iink SDK on Device

Add the iink SDK off-screen recognizer to my project

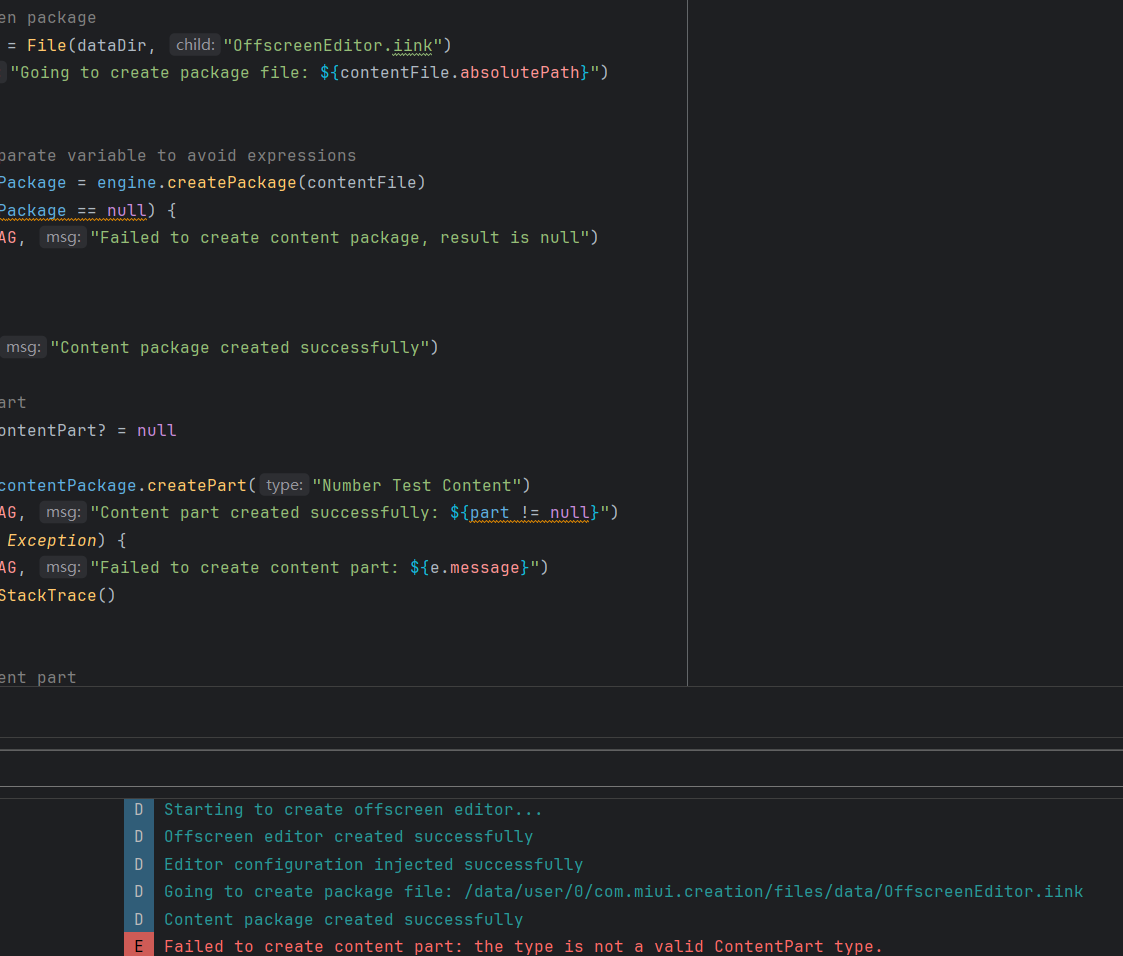

I tried to add the iink SDK off-screen recognizer to my project and encountered the following error. Can you help me check it out? Please explain if you need more details.

```

  // Create offscreen editor
Log.d(TAG, "Starting to create offscreen editor...")
val offscreenEditor = engine.createOffscreenEditor(1f, 1f)
if (offscreenEditor == null) {
Log.e(TAG, "Failed to create offscreen editor, result is null")
return
}

Log.d(TAG, "Offscreen editor created successfully")

// Configure the editor
try {
val configuration = offscreenEditor.configuration
configuration.inject(config)
Log.d(TAG, "Editor configuration injected successfully")
} catch (e: Exception) {
Log.e(TAG, "Failed to inject editor configuration: ${e.message}")
e.printStackTrace()
}

// Create or open package
val contentFile = File(dataDir, "OffscreenEditor.iink")
Log.d(TAG, "Going to create package file: ${contentFile.absolutePath}")

try {
// Use a separate variable to avoid expressions
var contentPackage = engine.createPackage(contentFile)
if (contentPackage == null) {
Log.e(TAG, "Failed to create content package, result is null")
return
}

Log.d(TAG, "Content package created successfully")

// Create part
var part: ContentPart? = null
try {
part = contentPackage.createPart("Number Test Content")
Log.d(TAG, "Content part created successfully: ${part != null}")
} catch (e: Exception) {
Log.e(TAG, "Failed to create content part: ${e.message}")
e.printStackTrace()
}

// Set content part
if (part != null) {
try {
offscreenEditor.part = part
Log.d(TAG, "Editor content part set successfully")
} catch (e: Exception) {
Log.e(TAG, "Failed to set editor content part: ${e.message}")
e.printStackTrace()
}

// Use main thread handler to delay test execution
android.os.Handler(android.os.Looper.getMainLooper()).postDelayed({
Log.d(TAG, "Starting drawing test...")
testDrawNumber(offscreenEditor)
}, 2000)
} else {
Log.e(TAG, "Skipping test because content part is null")
}

// Ensure the content package is closed
try {
contentPackage.close()
Log.d(TAG, "Content package closed")
} catch (e: Exception) {
Log.e(TAG, "Failed to close content package: ${e.message}")
e.printStackTrace()
}
} catch (e: Exception) {
Log.e(TAG, "Content package operation failed: ${e.message}")
e.printStackTrace()
}
} catch (e: Exception) {
Log.e(TAG, "Critical error occurred during test initialization: ${e.message}")
e.printStackTrace()
}
}

```







Thank you so much

Hello,


Thank you for contacting us.


As indicated in the error call stack, the content part type that you are using for your part is not valid:


part = contentPackage.createPart("Number Test Content")


When working with an OffScreenEditor you must use a "Raw Content" part:


part = contentPackage.createPart("Raw Content")


Best regards,


Gwenaëlle
